Product

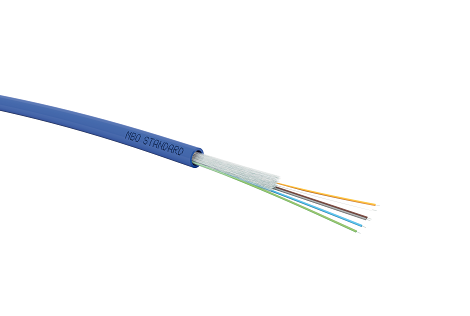

MBO STANDARD Cca ZH
ACOLAN OPTICAL
- Tight, indoor / outdoor
- 2 to 24 FO
- OM2, OM3, OM4, OS2
- Green outer jacket, ZH standard reinforced fiberglass
- Cca
Benefits
- Standard Universal range suitable for all environments
- Stripping becomes faster with our new tight Rapid Strip Fiber (RS 900)
- Design optimized for connector mounting or Fiber splicing
- ACOME Protection Index against rodents IPA : ✭✩✩✩✩ = Protection standard
Applications
- High speed data transmission cables designed for local networks (LAN).
- Designed for all applications: campus, backbone and horizontal cables
- Available for any type of environments : Office Buildings, Industrial, and Residential)
- Marking of outer jacket : ACOLAN MBO STD Cca ZH - fiber count & type - product reference – Euroclass – JJ/MM/AA hh :mm + metric

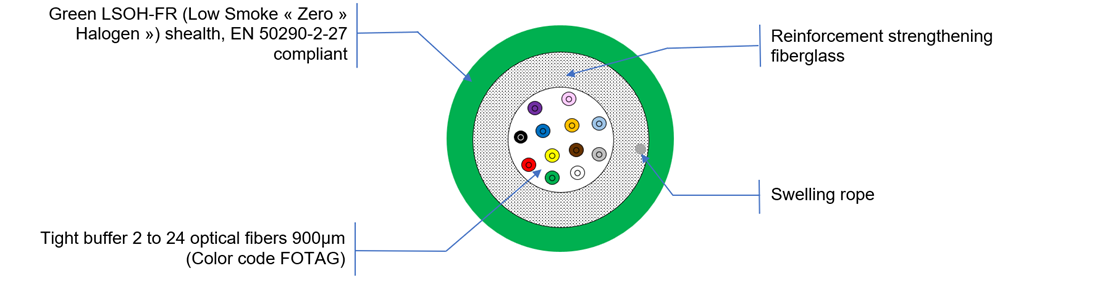

General characteristics
GENERAL
| Characteristics | Value | ||||||
| MBO 2 fibers | MBO 4 fibers | MBO 6 fibers | MBO 8 fibers | MBO 12 fibers | MBO 24 fibers | ||
| Z1433A | Z1434A | Z1435A | Z1436A | ||||
| Temperature range | Transport and storage | -40°C à + 70°C | |||||
| At the installation | -5°C à + 50°C | ||||||
| In service | -30°C à + 70°C | ||||||
| Maximum pulling force (N) | 800 | 1100 | 1800 | ||||
| Crush resistance (N/10cm) | 2000 | ||||||
| Minimum bending radius (mm) | 10 x cable diameter | ||||||
| Standard packaging | 2100m drums | ||||||
| Nominal sheath thickness (mm) | 1.0 | 1,1 | |||||
| Nominal diameter (mm) | 6.0 | 7.0 | 7.8 | 10.0 | |||
| Nominal weight (kg/km) | 31 | 33 | 45 | 51 | 55 | 85 | |
Cables are supplied with a protective wrap which must be maintained until full use of the product
COLOR OF FIBERS
| Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Violet | Pink | Turquoise |
Optical fibers n°13 to 24 are identified by a black mark (the buffer color of the black fiber is replaced by dark green).
Range
| Cable content | Single mode 9/125 (UIT-T G.652.D) OS2 | Multimode 50/125 OM2 | Multimode 50/125 OM3 | Multimode 50/125 OM4 |
| 2 fibers | B1419A | B1425A | B1431A | B1437A |
| 4 fibers | B1420A | B1426A | B1432A | B1438A |
| 6 fibers | B1421A | B1427A | B1433A | B1439A |
| 8 fibers | B1422A | B1428A | B1434A | B1440A |
| 12 fibers | B1423A | B1429A | B1435A | B1441A |
| 24 fibers | B1424A | B1430A | B1436A | B1442A |
Norms and standards
STANDARDS
- Cable et fibers : EN 60793 / EN 60794
- Wiring system : EN 50173-1 / ISO 11801
- Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
FIRE BEHAVIOUR
| Number of fibers | Euroclass | Declaration of performance | Standard (Europe) | Standard (Outside Europe) |
| 2 to 24 fibers | Cca-s1a,d1,a1 | 24MBO0006 |
IEC 60332-1 EN 50399 IEC 60754-2 IEC 61034 |
IEC 60332-1 (No flame propagation) IEC 60754-2 (Low gas corrosivity) IEC 60754-1 |
