Product
CLT FIREPROTECT
ACOLAN OPTCAL

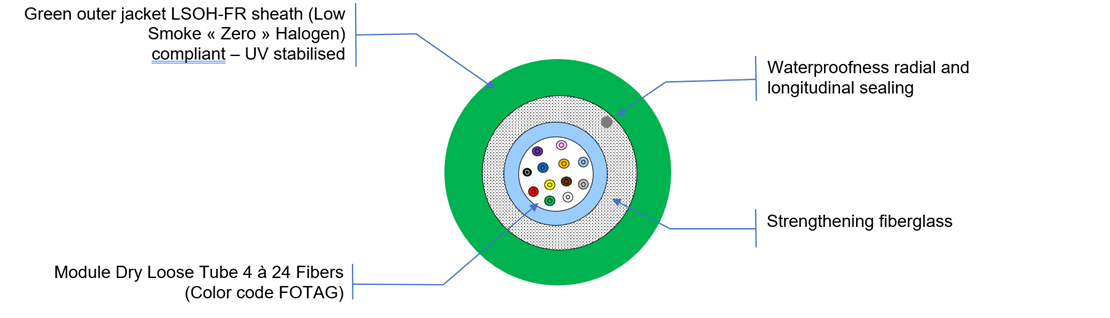

- Reinforced Dry Loose Structure, Indoor / Outdoor
- 4 à 48 fibers
- OM2, OM3, OM4, OM5, OS2
- Green outer jacket, ZH FIREPROTECT
- Cca
Benefits
- Flexible inner Tube
- Improved Fire Performance
- Reinforced Protection against
rodents - Reinforced Dry Loose Structure
- Waterlight
- ACOME Protection Index against rodents IPA : ✭✭✭✩✩ = Reinforced Protection
Applications
- High-speed data transmission cables are designed for all applications (campus, backbone, horizontal cables) and available for all environments (Industrial, Residential and Office Buildings).
- They can be use Indoor or Outdoor
- ACOLAN FIREPROTECT CLT RFD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm + metric
General characteristics
GENERAL
| Characteristics | Value | |||
| Z1416A | Z1417A | Z1418A | ||
| 4 to 12 FO | 24 FO | 48 FO | ||
| (Bi-tubes) | (Quadri-tubes) | |||
| Temperature range | Transport and storage | - 40°C à + 70°C | ||
| At the installation | -5°C à + 50°C | |||
| In Service | - 20°C + 60°C | |||
| Maximum pulling force (N) | 3000 | |||
| Crush resistance (N/10 cm) | 2000 | |||
| Minimu bending radius (mm) | 10xD | |||
| Standard packaging | 2100m drums | |||
| Nominal sheath thickness (mm) |
1,3 |
|||
| Nominal diameter (mm) | 8,3 | 9,2 | 10,3 | |
| Nominal weight (kg/km) | 74 | 86 | 108 | |
Cables are supplied with a protective wrap, which must be maintained until full use of the product.
COLOR FIBERS & TUBES
| Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Purple | Pink | Turquoise |
Range
| Cable content | Multimode 50/125 OM2 | Multimode 50/125 OM3 | Multimode 50/125 OM4 |
Multimode 50/125 OM5 |
Monomode 9/125 (G652) OS2 |
|
4 Fibers |
B1301A |
B1307A |
B1313A |
|
B1319A |
|
6 Fibers |
B1302A |
B1308A |
B1314A |
B1349A |
B1320A |
|
8 Fibers |
B1303A |
B1309A |
B1315A |
|
B1321A |
|
12 Fibers |
B1304A |
B1310A |
B1316A |
B1350A |
B1322A |
|
24 Fibers |
B1305A |
B1311A |
B1317A |
B1351A |
B1323A |
|
48 Fibers |
B1306A |
B1312A |
B1318A |
|
B1324A |
Norms and standards
GENERAL
- Cable and fibers : EN 60793 / EN 60794-1
- Wiring systems : EN 50173-1 / ISO 11801
- Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
FIRE BEHAVIOUR
| Number of fibers | Declaration of performance | Euroclass | Standards | Standards outside Europe |
| 4 to12 fibers | 20CLT0006 | Cca-s1a,d1,a1 |
IEC 60332-1, EN 50399, IEC 60754-2, IEC 61034 |
IEC 60332-1 (No flame propagation) IEC 60754-2 (Low gas corrosivity) IEC 60754-1 (Low toxicity) IEC 60332-3-24 (3C)* (4 to 48 fo) (No fire propagation) |
| 24 fibers | 20CLT0008 | |||
| 48 fibers | 21CLT0009 |
*3C : Fire tests performed by our own COFRAC accredited fire lab.
