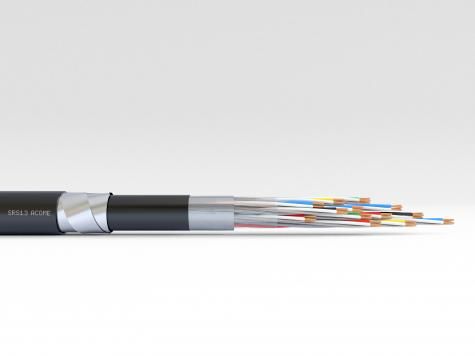

SRS13

Signal cables for surface networks:
Urban railways (K23 waterproof version)

Benefits

  • Longitudinal and cross-sectional waterproofing
  • K23-compatible
  • Improved fire performance


Applications

  • Main signal, control and remote transmission cable for installation in cable trays, ducts or buried
  • Halogen-free gel-filled waterproof cables installed along continuously electrified lines up to 1500V
  • Designed to equip tramway and surface metro, regional express networks, and tram-train networks

General characteristics

schéma coupe SRS213



  1. Solid core copper wire - Ø1 or 1.2mm
  2. Insulation: coloured polyethylene
  3. Assembly in 4-wire stars except in 4 pairs (twisted pair assembly)
  4. General assembly with waterproofing material
  5. Copolymer aluminium tape
  6. Black polyethylene jacket
  7. Steel spiral strips armour
  8. Coloured LSOH sheath

Mechanical
  • Operating temperature: -20°C to +60°C
  • Min. bending radius:
  • static: ≥8 x Ø, dynamic: ≥16 x Ø
  • Resistant to mineral oils, acids and bases
  • Resistant to UV, weather, low temperatures
  • Corrosivity of combustion gases:
  • pH ≥ 4.3 (EN 50267-2-2)
  • Longitudinal waterproofing: H₂O penetration < 3cm (NF EN 50289-4-2 method B)
Electrical
  • Linear resistance:
    • 10/10 ≤ 23.06Ω/km, 12/10 ≤ 16.02Ω/km
    • Operating voltage:
    • 10/10 500V 10/12 750V
  • Capacitances / pair:
    • ≤ 67nF/km for cables with 1 pair
    • ≤ 62nF/km for cables with 4 pairs
    •  ≤ 57.5nF/km for other cables
  • Average capacitance unbalance for 500m:
    • in the 4-wire cable: ≤ 90pF
    • between 4-wires or adjacent pairs: ≤ 45pF

Range



Number
of pairs

Diameter
of copper
(mm)

Diameter
of sheath
(mm)

Net weight
(kg/km)

Reel format
Length (m)

Range  10/10

U4128

2 p.

1,0

12,0

210

B 1000

U4129

4 p.

1,0

14,6

310

D 1500

U4130

8 p.

1,0

18,0

480

F 2000

U4131

14 p.

1,0

23,5

650

D 500

U4132

28 p.

1,0

29,0

1160

E 500

U4308

56 p.

1,0

38,5

2045

G 500

U4309

112 p.

1,0

51,5

3710

H 500

Range  12/10

U4133

2 p.

1,2

13,7

270

C 1000

U4134

4 p.

1,2

17,1

415

C 500

U4135

8 p.

1,2

21,5

650

E 1000

U4136

14 p.

1,2

23,7

900

E 500

U4137

28 p.

1,2

31,0

1540

F 500

U4310

56 p.

1,2

41,0

2810

G 500

U4311

112 p.

1,2

54,0

5150

H 500



Norms and standards

General standards

LSOH

Fire behavior
  • NF C 32070.2.1 (flame retardant EN 60332-1)
