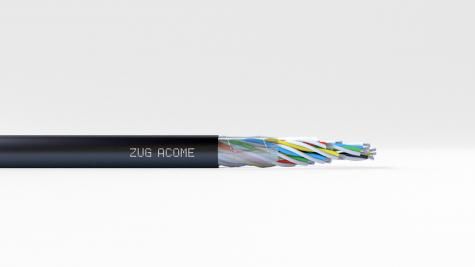

ZUG - SUG - ZUT

Connecting cables
Intercity railway - Indoor equipment for substations and switchgear

Benefits

  • The ZUT version is protected against electromagnetic interference

Applications

  • Links the computer room to the relay support racks and electronic signalling devices, as well as the racks between them

General characteristics

schéma zug/sug/zut



1.    Tinned copper stranded core - Class 5
2.    Insulation: coloured lead-free PVC
3.    Twisted paired (ZUG/ZUT) or multi-core (SUG) wiring - Tinned copper braid (in ZUT version only)
4.    Outer jacket black lead-free PVC + marking + metric

Mechanical
  • Operating temperature: 70°C
  • Bending radius: static 4 x D, dynamic 8 x D
  • Installation using cable trays and feedthroughs
Electrical
  • Linear resistance:
    • 1mm²: 20.1Ω/km
    • 0.38mm²: 52.5Ω/km
  • Operating voltage: 500V

Range



Composition

Cross-sectional area
of core
(mm2)

Composition
of core
Nb x Ømm

Diameter
of insulation
(mm)

Diameter
of sheath
(mm)

Net weight
(kg/km)

Reel format
Length (m)

Multi-pair ZUG-S

L2791

1 p.

1

32 x 0,2

2,09

7,0

64

A 1000

L2792

3 p.

1

32 x 0,2

2,09

10,0

120

A 500

S2316

6 p.

1

32 x 0,2

2,09

12,5

238

D 1000

L2793

12 p.

1

32 x 0,2

2,09

15,7

390

C 500

U1730

28 p.

0,38

12 x 0,2

1,40

15,6

335

A 250

Multi-core SUG-S

W2663

3 x

1

32 x 0,2

2,09

7,5

76

A 1000

Multi-pair ZUT-S

M4134

2 p.

1

32 x 0,2

2,09

8,8

125

B 1000

L7001

6 p.

1

32 x 0,2

2,09

13

274

D 1000

M4133

12 p.

1

32 x 0,2

2,09

16,5

448

C 500



Other formats available on request

Norms and standards

General standards
  • SNCF CT 455 specification
  • SNCF approved
Fire behavior
  • Fire resistance NFC 32070.2.1 (flame retardant) and IEC 60332-1
