Product

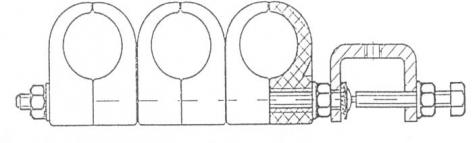

![Photo produit acome C0999S](/sites/default/files/produits/TSX-02S-Single-feeder-clamp-2017-02-03_4.jpg)
General characteristics
Clamp Body: |
Transnature polypropylene |
Screw and Nut: |
Stainless SUS304 |
MECHANICAL & ENVIRONMENTAL
Color: |
Black |
Use Temperature Range: |
-40 ℃< θ < +70 ℃ |
RoHS Compliance: |
Yes |
TYPE
Product number | Type | Approx. weight (g / p) |
C1154S | 1 × 1/4F (φ9.5) | 155 |
C1155S | 2 × 1/4F (φ9.5) | 190 |
C1156S | 3 × 1/4F (φ9.5) | 210 |
C1157S | 4 × 1/4F (φ9.5) | 240 |
C1042S | 1 × 3/8XF (φ10.0) | 150 |
C1173S | 2 × 3/8XF (φ10.0) | 180 |
C1174S | 3 × 3/8XF (φ10.0) | 210 |
C1175S | 4 × 3/8XF (φ10.0) | 240 |
C1044S | 1 × 3/8F (φ10.6) | 168 |
C1176S | 2 × 3/8F (φ10.6) | 187 |
C1177S | 3 × 3/8F (φ10.6) | 206 |
C1178S | 4 ×3/8F (φ10.6) | 225 |
C0108S | 1 × 1/2F (φ16) | 170 |
C0109S | 2 × 1/2F (φ16) | 190 |
C0110S | 3 × 1/2F (φ16) | 220 |
C0781S | 4 × 1/2F (φ16) | 240 |
C0111S | 1 × 7/8F (φ27) | 200 |
C0112S | 2 × 7/8F (φ27) | 250 |
C0113S | 3 × 7/8F (φ27) | 310 |
C0655S | 4 × 7/8F (φ27) | 360 |
C0114S | 1 ×1-1/4F (φ39.4) | 240 |
C0115S | 2 ×1-1/4F (φ39.4) | 340 |
C0116S | 3 ×1-1/4F (φ39.4) | 430 |
C0782S | 4 ×1-1/4F (φ39.4) | 515 |
C0117S | 1 ×1-5/8F (φ50) | 280 |
C0118S | 2 ×1-5/8F (φ50) | 400 |
C0119S | 3 ×1-5/8F (φ50) | 505 |
C0783S | 4 ×1-5/8F (φ50) | 620 |
