C0030E
HYPERCELL

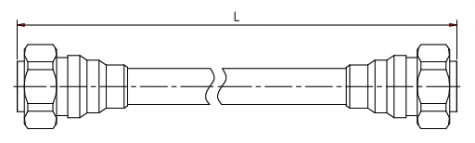

Jumper 1/2SF LSOH 7/16 Din Male – 7/16 Din Male
General characteristics
|
Cable: |
ACOME 50-1/2SF LSOH cable |
|
Connector: |
7/16 Din male |
|
Assembly: |
Inner and outer contact 100% soldered and with molding |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-40°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.52 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C0364E | 385 | -32 | 0.21 | -30 | 0.33 | -26 | 0.37 |
| 1.5 | C1586E | 480 | -32 | 0.28 | -30 | 0.43 | -26 | 0.51 |
| 2 | C0030E | 575 | -32 | 0.33 | -30 | 0.48 | -26 | 0.57 |
| 3 | C0750E | 765 | -32 | 0.43 | -30 | 0.66 | -26 | 0.78 |
| 4 | C0911E | 960 | -32 | 0.56 | -30 | 0.85 | -26 | 1.01 |
| 5 | C0751E | 1155 | -32 | 0.66 | -30 | 0.99 | -26 | 1.16 |
| 7.5 | C0752E | 1630 | -30 | 0.92 | -28 | 1.42 | -24 | 1.68 |
| 10 | C0753E | 2115 | -30 | 1.22 | -28 | 1.84 | -24 | 2.19 |
