C0693E
HYPERCELL

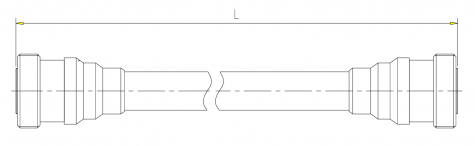

Jumper 1/2SF PE 7/16 Din Female - 7/16 Din Female
General characteristics
|
Cable: |
ACOME 50-1/2SF PE cable |
|
Connector: |
7/16 Din Female |
|
Assembly: |
Inner and outer contact 100% soldered and with molding |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.52 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C0690E | 340 | -32 | 0.21 | -30 | 0.33 | -26 | 0.37 |
| 1.5 | C0691E | 420 | -32 | 0.26 | -30 | 0.40 | -26 | 0.47 |
| 2 | C0692E | 505 | -32 | 0.33 | -30 | 0.48 | -26 | 0.57 |
| 2.5 | C0693E | 590 | -32 | 0.38 | -30 | 0.57 | -26 | 0.67 |
| 3 | C0694E | 680 | -32 | 0.43 | -30 | 0.66 | -26 | 0.78 |
| 3.5 | C1020E | 770 | -32 | 0.49 | -30 | 0.76 | -26 | 0.88 |
| 4 | C0695E | 850 | -32 | 0.54 | -30 | 0.82 | -26 | 0.97 |
| 5 | C0696E | 1020 | -32 | 0.66 | -30 | 0.99 | -26 | 1.16 |
