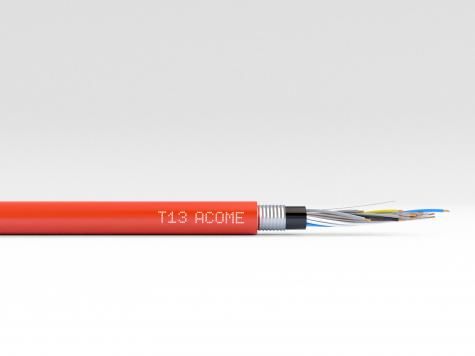

T13
Tramway signalling
Inter-city rail - Signalling main cables
Inter-city rail - Signalling main cables
Benefits
- Cross-sectionally waterproof
- Does not contain halogenated compounds
Applications
- Main remote control and remote transmission cable, installed in multi-tubular sheaths, under roads or pavements, along DC-electrified lines up to 1500V
- For "rail" or "tyre" tram lines at dedicated sites
General characteristics
Cable interior
- Red copper solid core - Diameter 10/10 or 12/10
- Insulation: coloured polyethylene
- 4-wire wiring except in 4 pairs (twisted pair wiring)
- Shielding by aluminium tape with continuity wire
Protection
- Polyethylene water-blocking internal sheath
- Armour by corrugated steel tape, longitudinally laid, with overlap, or by 2 spiral strips with joint
- High density polyethylene outer jacket + marking + metric
Mechanical
- Operating temperature: 60°C
- Resistant to mineral oils, acids and bases
- Resistant to UV, weather, low temperatures
- Resistant to damage and cracking
- Bending radius:
- Static: 10 x D,
- Dynamic: 20 x D
- Excellent friction coefficient adapted to pulling through conduits
Electrical
- Linear resistance:
- 10/10: 23.06Ω/km,
- 12/10: 16.02Ω/km
- Operating voltages: 750V
- Capacitances:
- 1 pair: < 67nF/km,
- 4 pairs: < 62nF/km,
- others: < 57.5nF/km
- Average capacitance unbalance for 500m:
- in the 4-wire cable: 90pF,
- between 4-wires or adjacent pairs: 45pF
Range
|
|
Number |
Diameter |
Net weight |
Reel format |
|
Range 10/10 |
||||
|
U3673 |
2 |
12,8 |
180 |
C 1000 |
|
U3674 |
4 |
16,4 |
266 |
B 500 |
|
U3675 |
8 |
19,3 |
380 |
C 500 |
|
U3676 |
14 |
22 |
545 |
D 500 |
|
U3678 |
28 |
25,5 |
870 |
E 500 |
|
Range 12/10 |
||||
|
U3682 |
2 |
12,8 |
200 |
C 1000 |
|
U3683 |
4 |
16,4 |
300 |
B 500 |
|
U3684 |
8 |
19,2 |
440 |
C 500 |
|
U3685 |
14 |
21,9 |
642 |
D 500 |
|
U3687 |
28 |
27,5 |
1113 |
E 500 |
- Other formats available on request
- Note: The 28 p. cables automatically have 2 spiral strips as armour; for all others, choice between ringed tape and 2 spiral strips
Norms and standards
General standards
- Cable interior as per Standard NF F 55-623 - Same as K23
- Standard NF C 32-050 armour
