Product
CT2243
Telecommunications - Main optical cables
Intercity (High-Speed/LGV and conventional lines)
Intercity (High-Speed/LGV and conventional lines)
Benefits
- Robust compact cable for installation in conduits or ducts
- Installation by pulling, blowing (with air) or floating (with water)
- Dielectric structure in Compact Tube® up to 144 fibres
- Longitudinal waterproofing
Applications
- Long-distance Telecom line for installation along railways
- Cable suitable for pulling/blowing through conduits

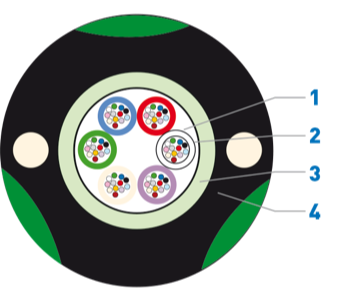

General characteristics
- Compact Tube® structure (6 or 12 fibres per tube)
- Non-metallic strength members (FRP)
- Glass yarns with water-swelling elements
- Black high-density polyethylene outer sheath with 3 green bands
Electrical
- Operating temperature:
- -30°C / +70°C (6 to 144 OF)
- Installation temperature: -5°C / +50°C
- Max. installation voltage:
- 2250N (6 to 72 OF)
- 2750N (144 OF)
- Resistance to crushing: 300N/cm
- Min. bending radius:
- 100mm (6 and 12 OF)
- 120mm (24 to 72 OF)
- 180mm (144OF)
- Cable net weight:
- 83kg/km (12 OF)
- 98kg/km (24 to 72 OF)
- 130kg/km (144OF)
- Longitudinal waterproofing per IEC 60794-1-F5
Range
|
|
Nombre de fibres |
Composition |
Diamètre extérieur en mm |
Conditionnement Touret Longueur m |
|
N9640 |
6 |
1 module de 6 |
10,9 |
G 4800 |
|
N8315 |
12 |
2 modules de 6 |
10,9 |
G 4800 |
|
N8316 |
36 |
6 modules de 6 |
11,4 |
G 4800 |
|
N8317 |
72 |
6 modules de 12 |
11,4 |
G 4800 |
|
N8368 |
144 |
12 modules de 12 |
13,0 |
H 4800 |
- Optical fibre specifications available on request
Norms and standards
General standards
- SNCF CT 2243.V.06 specification, dated 13/05/2016
- SNCF approved
