Product
C0762E
HYPERCELL
Jumper 1/2F PE 7/16 Din Female - 7/16 Din Female
General characteristics
|
Cable: |
ACOME 50-1/2F PE cable |
|
Connector: |
7/16 Din female |
|
Assembly: |
Inner and outer contact 100% soldered and with molding |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
70 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.81 KW | |
| Velocity: | 87% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range

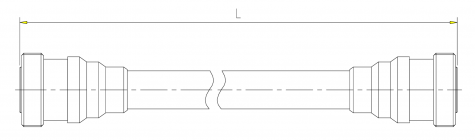

| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C0760E | 390 | -32 | 0.18 | -30 | 0.26 | -26 | 0.30 |
| 1.5 | C0761E | 505 | -32 | 0.22 | -30 | 0.32 | -26 | 0.37 |
| 2 | C0762E | 615 | -32 | 0.26 | -30 | 0.38 | -26 | 0.44 |
| 2.5 | C0763E | 730 | -32 | 0.28 | -30 | 0.43 | -26 | 0.51 |
| 3 | C0764E | 840 | -32 | 0.33 | -30 | 0.49 | -26 | 0.57 |
| 4 | C0765E | 1060 | -32 | 0.39 | -30 | 0.61 | -26 | 0.71 |
| 5 | C0766E | 1280 | -32 | 0.46 | -30 | 0.71 | -26 | 0.84 |
