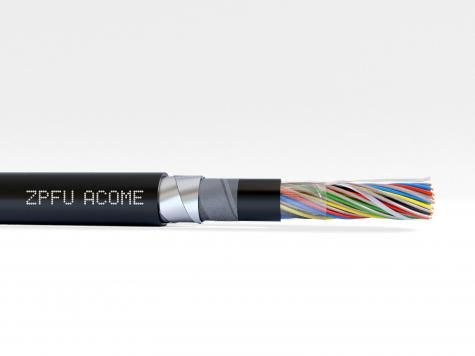

Intercity railway signal cable ZPFU

ZPFU

Intercity railway signal cable (DC-electrified lines)

Benefits

  • Can be used in short lengths along 25kV AC-electrified tracks to connect switchgear substations to switches and crossings

Applications

  • Connects the central control station to the switchgear substations
  • Installed in long lengths along non-electrified tracks and 1500V DC-electrified tracks


General characteristics

schéma coupe ZPFU



  1. Red copper solid core – Class 1
  2. Insulation: coloured polyethylene
  3. Twisted pair wiring
  4. Polyethylene water-blocking internal sheath
  5. Armour: 2 steel spiral strips
  6. Outer black lead-free PVC or brown SH jacket + marking + metric

Mechanical
  • Operating temperature: 70°C
  • Resistant to mineral oils, acids and bases
  • Bending radius: static 8 x D, dynamic 16 x D
  • Duct or buried installation
Electrical
  • Linear resistance: 18.1Ω/km
  • Operating voltage: 750V
  • Capacitance: < 55nF/km
  • Characteristic impedance: 120Ω at 45KHz
  • Linear attenuation: < 2.5dB/km at 45kHz.

Range

PVC

Halogen free

Composition

Cross-sectional area
of core
(mm2)

Composition
of core
Nb x Ømm

Diameter
of sheath
(mm)

Net weight
(kg/km)
PVC/ZH

Reel format
Length (m)

U3763

U3783

1 p.

1

1 x 1,12

11,4

165/210

C 1000

U3764

U3784

2 p.*

1

1 x 1,12

12,6

218/255

D 1000

U3765

U3785

4 p.

1

1 x 1,12

16,0

330/375

E 1000

U3766

U3786

7 p.

1

1 x 1,12

19,5

615/690

F 1000

U3767

U3787

14 p.

1

1 x 1,12

24,5

945/1010

F 500

U3768

U3788

21 p.

1

1 x 1,12

28,1

1216/1330

F 500

U3769

U3789

28 p.

1

1 x 1,12

31,0

1439/1560

G 500



  • Other formats available on request Associated range: ZPFU with 1.5mm² cross-section
  • Sheath diameter is indicative and may vary slightly
  • Assembly in 4-wire colour: Black-Colourless / Blue-Yellow

Norms and standards

General standards
  • SNCF CT 445 specification
  • SNCF approved
Euroclass
  • Euroclass B2ca-s1a, d2, a1 (ZPFU - SH cables)
Fire behavior
  • Fire resistance NFC 32070.2.1 (flame retardant) and IEC 60332-1
