Product
C5924E-L200
HYPERCELL

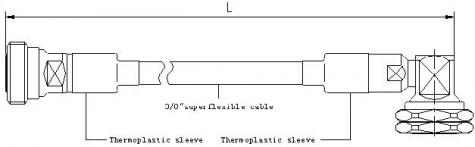

Jumper 3/8SF PE 7/16 Din Female – 7/16 Din Male Elbow
General characteristics
|
Cable: |
ACOME 50-3/8SF PE cable |
|
Connector: |
7/16 Din female / 7/16 Din male elbow |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.51 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -145 dBc |
| IM3 at 1800MHz | ≤ -145 dBc | |
| IM7 at 2100MHz | ≤ -145 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C5924E-L100 | 320 | -28 | 0.25 | -26 | 0.38 | -24 | 0.45 |
| 1.8 | C5924E-L180 | 425 | -28 | 0.36 | -26 | 0.55 | -24 | 0.65 |
| 2 | C5924E-L200 | 445 | -28 | 0.38 | -26 | 0.59 | -24 | 0.70 |
| 2.5 | C5924E-L250 | 515 | -28 | 0.45 | -26 | 0.70 | -24 | 0.83 |
| 3 | C5924E-L300 | 575 | -28 | 0.52 | -26 | 0.80 | -24 | 0.95 |
