FTTO (Fiber To The Office) micro-switches, combined with a Tertiary RMS optical architecture, delivers optical fiber to the workstation. It does so using the usual connections preferred by users: RJ45 interfaces.
Heavy-duty versions allow operation from -25°C to + 65°C.
Installation
The clip-on assembly requires no tools, making micro-switch installation quick and easy. The dimensions are compatible with all 45x45 format receptacles (trunking, floor boxes, etc.).
For the hardened versions, the microswitches are delivered with a DIN rail mounting kit
PoE option
Thanks to the Power-over-Ethernet function (PoE+ IEEE 802.3at and PoE IEEE 802.3af), terminals connected via the RJ45 ports can be supplied electricity simultaneously with data transmission. There is no need for an external power supply.
Administration
The micro-switches have an integrated administration interface accessible via a web browser (e.g. Internet Explorer, Firefox), http / https, Telnet / SSH, SNMP v1, v2c, v3 and the MICROSENS NMP platform.
Sample functions: VLANs, priority assignment (QoS), Power-over-Ethernet, PoE+, IPv6, 802.1X authentication, LLDP-Med, configuration option by CLI (Command Line Interface) and script file, etc.
Firmware and configurations can be stored on a Micro-SD card (not included). This new function makes microswitch management easy: preconfiguration, replacement, software updates, etc.
General characteristics
Microswitch Main Features:
IEEE 802.3 standard 10/100/1000 Mbps 2 Gigabit Ethernet microswitch.
5 RJ45 ports 10/100/1000Base-T 4 in front (port 1 to 4) + 1 side port (port 6).
1 Gigabit Uplink port: fixed fiber, SFP, Compact SFP or 10/100/1000Base-TX (depending on model) (port 5).
Architecture
The microswitch architecture combines an ARM processor and Linux OS.
This new configuration provides advanced functions:
- IPv4/IPv6 Dual Stack
- LLDP/CDP/LLDP-MED
- SNMP v3
- 20" startup
- Storage and automation of routines, mass rollouts
- Server integration (DHCP, RADIUS, etc.)
- VLANs 256,
- IGMP Snooping,
- Energy-Efficient Ethernet,
- SNMP v3 supports data encryption, User-based Security Model (USM), and View-based Access Control Model (VACM)
|
General |
|
|
Type |
IEEE 802.3 compliant Gigabit Ethernet Layer 2+ switch |
|
Performance |
Store and forward, full wire speed, non blocking on all ports |
|
MAC addresses |
8192 addresses with self-learning and automatic updating |
|
Jumbo frames |
Maximum 10240 bytes |
|
VLAN |
Tagging IEEE 802.3ac IEEE 802.1p prioritization VLAN ID from 0 to 4095 256 VLANs Static and dynamic VLAN table Modes: access, trunk, and hybrid |
|
Quality of Service: |
Hardware prioritization of 4 queues per port according to:
Configurable queue weighting |
|
Administration |
CLI: Telnet, SSH Web (http, https) SNMP v1,v2c and v3 MICROSENS NMP Platform |
|
Additional features |
Dual Stack IPv4/IPv6 Port Monitor CDP v1 and v2 |
|
Front port 1 to 4 RJ45 |
|
|
Number of ports |
4 |
|
Type |
Gigabit Ethernet 10/100/1000BaseT |
|
Connector |
Shielded RJ45 |
|
Type of cable |
Twisted pair cable, minimum category 5e, impedance 100 W, maximum length 100 m |
|
Flow Control |
Pause frames (IEEE 802.3x), configurable |
|
Pin position |
Auto MDI/MDI-X, automatic polarity |
|
Power Over Ethernet (depending on model) |
Power Sourcing Equipment (PSE) IEEE 802.3af and 802.3at class 0, max. 30 W |
|
Port 5 Up link Fiber optic (depending on model) |
|
|
Number of ports |
1 |
|
Type |
Gigabit Ethernet Multi-mode 1000BaseSX or Single-mode: 1000BaseLX |
|
Connector |
ST or SC Duplex |
|
Type of fiber |
Multimode 50/125 or 62,5/125 µm Single-mode 9/125* OS2 |
|
Distance (*) |
Multi-mode 550m Single-mode 10km |
|
Optical power |
Multimode 850 nm: -9.5 .. +4dBm Single-mode 1310 nm: -9.5 .. +3dBm |
|
Sensitivity |
Multimode 850 nm -18 dBm (max. 0 dBm) Single-mode 1310 nm -20 dBm (max. -3 dBm) |
|
Flow Control |
Pause frames (IEEE 802.3x), configurable
|
(*) The distances provided are based on the assumption of normal optical attenuation and are not guaranteed
|
Port 5 Up link SFP (depending on model) |
|
|
Number of ports |
1 (Use only SFPs with extended temperature range -40/+85 °C) |
|
Type |
Fast / Gigabit Ethernet 100/1000BaseX |
|
Connection |
SFP-Slot |
|
Flow Control |
Pause frames (IEEE 802.3x), configurable |
|
Port 5 Up link RJ45 (depending on model) |
|
|
Number of ports |
1 |
|
Type |
Gigabit Ethernet 10/100/1000BaseT |
|
Connector |
Shielded RJ45 |
|
Type of cable |
Twisted pair cable, minimum category 5e, impedance 100 W, maximum length 100 m |
|
Flow Control |
Pause frames (IEEE 802.3x), configurable |
|
Pin position |
Auto MDI/MDI-X, automatic polarity |
|
Power Over Ethernet (depending on model) |
Powered Device (PD) IEEE 802.3af and 802.3at class 0, max. 30 W |
|
Port 6 Downlink: RJ45 |
|
|
Number of ports |
1 |
|
Type |
Gigabit Ethernet 10/100/1000BaseT |
|
Connector |
Shielded RJ45 |
|
Type of cable |
Twisted pair cable, minimum category 5e, impedance 100 W, maximum length 100 m |
|
Flow Control |
Pause frames (IEEE 802.3x), configurable |
|
Pin position |
Auto MDI/MDI-X, automatic polarity |
|
Power Over Ethernet (depending on model) |
Power Sourcing Equipment (PSE) IEEE 802.3af and 802.3at class 0, max. 30 W |
|
Local port (for future applications) |
|
|
Number of ports |
1 |
|
Type |
RS232 |
|
Connector |
Mini-USB |
|
Control buttons |
|
|
"Reset" button |
Microswitch reset, last saved configuration is reloaded |
|
"Config" button |
IP configuration request Reset to factory settings if pressed simultaneously with the "Reset" button (can be deactivated) |
|
Environment |
|
|
Ambient temperature |
0 / +40°C -25 / +65 °C in hardened version* |
|
Storage temperature |
-20 / +85°C -25 / +85 °C in hardened version* |
|
Relative air humidity |
10 / 90 %, not condensed |
|
Information LEDs |
|
|
Power (PoE models only) |
Ports 1 to 4 (front) and 6 (cascade): Green: delivering PoE Blue: delivering PoE+ Orange: waiting for PoE supply Red: error |
|
Link |
Ports 1 to 6: Flashing: activity Green: authorized/switching Orange: blocked Red: not authorized |
|
Microswitch status |
"on": power supply OK "sys": ready |
|
LED display modes |
Dynamic: display of static states and flashing if there is activity on the port Static: display of static states only, no flickering Quiet: display only LEDs "sys" and "on", other LEDs remain off Dark: all LEDs are off |
|
Reliability |
|
|
MTBF |
500,000 hours |
|
Calculation method |
MIL-HDBK-217F |
|
Standards |
|
|
CE |
2004/108/EC (EMC) 2006/95/EC (Low voltage) |
|
Safety |
EN60950-1:2011/1 |
|
EMC Emissions |
EN 55022:2011/12 |
|
EMC Immunity |
EN 55024:2011/09 |
|
IEEE (Ethernet) |
802.3i 10BaseT 802.3u 100BaseTX 802.3z 1000BaseX 802.3ab 1000BaseT 802.3az Energy optimization 802.3x Flow Control 802.3ac VLAN tagging 802.3af PoE 802.3at PoE+ 802.1AB LLDP 802.1D Spanning Tree 802.1Q Tagged VLANs 802.1p Packet prioritization 802.1w Rapid Spanning Tree 802.1X Network Access Control |
|
Standards (continued) |
|
|
IETF RFC (Internet) |
IPv4 - RFC 791 (IPv4) - RFC 826 (ARP) - RFC 792 (ICMP) - RFC 2131 (DHCP) - RFC 2474/3260 (IPv4 DiffServ / IPv6 Traffic Class) - RFC 4541 (IGMP)
IPv6 - RFC 2460/2464/3484/3513 (IPv6) - RFC 2462 (Adress Configuration) - RFC 2463 (ICMPv6) - RFC 2461 (Neighbor Discovery Protocol) - RFC 3315 (DHCPv6) - RFC 3810/4604 (MLD) - RFC 4330 (NTP) - RFC 1155/1156/1157 (SNMPv1) - RFC 1901/1905/1906 (SNMPv2) - RFC 3411/3412/3584 (SNMPv3) - RFC 2574/3414 (USM) - RFC 2575/3415 (VACM) - RFC 2865 (RADIUS) - RFC 2866 (Accouting) - RFC 2868 (Tunnel Attributes) - RFC 5424 (Syslog) |
|
Enclosure |
|
|
Dimensions |
Length 90 mm x height 45 mm x total depth 58 mm (excluding connections) |
|
Installation |
Installation depth 35 mm Clip-on mounting in 45x45 format |
|
Weight |
320g |
|
Colour |
White (front) black (hardened versions) |
|
Cooling |
Natural convection (without fan) |
|
Power supply |
|
|
Input |
PoE models: 44 to 57 V direct current (nominal voltage: 54 V). PoE 802.3at requires a minimum of 54 V to operate Non PoE models: 195 to 265 V alternating current (nominal 230 V) at 50 to 60 Hz (nominal 50 Hz) |
|
Consumption |
PoE models: Typical 4 W (switching only), maximum 100 W with PoE supply Non PoE models: Typical 5.5W |
|
Connector |
3-pole lockable via 2 screws (PE/-/+) |
|
Grounding |
Fast-On type tab 6.3 mm |

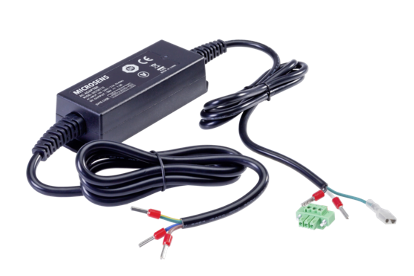

Individual power supply
The individual power supply unit provides the necessary voltage for the PoE-version microswitches.
- Input voltage: 90 to 264 V AC
- Output voltage: 54 V CC
- Power: 65W
- IEEE 802.3af compliant
- Item code: IB2067
ACCESSORIES
|
Item code |
Name |
|
IB2035 |
4 Gb µSD card for MICROSENS G6 micro switch, operation from -25 to +85 °C |
|
IB2067 |
Active components - 54V / 65W power supply unit / 90V input and 54V output wires prepared and uncabled |
| Port de façade RJ45 : n° 1 à 4 | |
| Nombre de port | 4 |
| Type | Gigabit Ethernet 10/100/1000BaseT |
| Connecteur | RJ45 blindé |
| Type de câble | Câble à paires torsadées, minimum catégorie 5e, impédance 100 W, longueur maximum 100 m |
| Flow Control | Pause frames (IEEE 802.3x), configurable |
| Position des broches | Auto MDI/MDI-X, polarité automatique |
| Power Over Ethernet (selon modèle) | Power Sourcing Equipment (PSE) IEEE 802.3af et 802.3at class 0, max. 30 W |
| Downlink Port RJ45 : n° 6 | |
| Nombre de port | 1 |
| Type | Gigabit Ethernet 10/100/1000BaseT |
| Connecteur | RJ45 blindé |
| Type de câble | Câble à paires torsadées, catégorie minimum 5e, impédance 100 W, longueur maximum 100 m |
| Flow Control | Pause frames (IEEE 802.3x), configurable |
| Position des broches | Auto MDI/MDI-X, polarité automatique |
| Power Over Ethernet (selon modèle) | Power Sourcing Equipment (PSE) IEEE 802.3af et 802.3at class 0, max. 30 W |
| Port optique SC (selon modèle) : n° 5 | |
| Nombre de port | 1 |
| Type | Fast ou Gigabit Ethernet Multimode : 100BaseFX ou 1000BaseSX ou Monomode : 100BaseFX ou 1000BaseLX |
| Connecteur | SC Duplex |
| Type de fibre | Multimode 50/125 ou 62,5/125 µm Monomode 9/125 µm |
| Distance (*) | Fast : 2000 m Gigabit Multimode : 550 m Gigabit Monomode : 10 km |
| Puissance optique (Gigabit) | Multimode 850 nm : -9,5 .. -4 dBm Monomode 1310 nm : -9,5 .. -3 dBm |
| Sensibilité (Gigabit) | Multimode 850 nm -18 dBm (max. 0 dBm) Monomode 1310 nm -20 dBm (max. -3 dBm) |
| Flow Control | Pause frames (IEEE 802.3x), configurable |
(*) Les distances fournies sont fondées sur l’hypothèse d’atténuations optiques normales et ne sont pas garanties.
| Port SFP (selon modèle) : n° 5 | |
| Nombre de port | 1 (N'utiliser que des SFP avec plage de température étendue -40/+85 °C) |
| Type | Fast / Gigabit Ethernet 100/1000BaseX |
| Connection | SFP-Slot |
| Flow Control | Pause frames (IEEE 802.3x), configurable |
| Port Compact-SFP (selon modèle) : n° 5 | |
| Nombre de port | 1 (n'utiliser que des SFP avec plage de température étendue -40/+85 °C) |
| Type | Gigabit Ethernet 1000BaseX |
| Connection | SFP-Slot |
| Flow Control | Pause frames (IEEE 802.3x), configurable |
| Uplink Port RJ45 (selon modèle) : n° 5 | |
| Nombre de port | 1 |
| Type | Gigabit Ethernet 10/100/1000BaseT |
| Connecteur | RJ45 blindé |
| Type de câble | Câble à paires torsadées, catégorie minimum 5e, impédance 100 W, longueur maximum 100 m |
| Flow Control | Pause frames (IEEE 802.3x), configurable |
| Position des broches | Auto MDI/MDI-X, polarité automatique |
| Power Over Ethernet (selon modèle) | Powered Device (PD) IEEE 802.3af et 802.3at class 0, max. 30 W |
| CARACTÉRISTIQUES | VALEURS |
| Température ambiante | 0 / +40 °C |
| -25 / +65 °C en version durcie* | |
| Température de stockage | -20 / +85 °C |
| -25 / +85 °C en version durcie* | |
| Humidité relative de l'air | 10 / 90 %, non condensée |
* Des versions durcies avec plage de température étendue sont disponibles pour répondre à des contraintes environnementales spécifiques (parking, locaux non chauffés, coffrets extérieurs, …). Nous consulter.
| CARACTÉRISTIQUES | VALEURS |
| Entrée | Modèles PoE : 44 à 57 V courant continu (tension nominale : 54 V). Modèles non PoE : 195 à 265 V courant alternatif (nominal 230 V) sous 50 à 60 Hz (nomilal 50 Hz) |
| Consommation | Modèles PoE : Typique : 4 W (uniquement commutation), maximum 80 W avec fourniture du PoE Modèles non PoE : Typique : 5,5 W |
| Connecteur | 3 pôles verrouillables via 2 vis (PE/-/+) |
| Mise à la terre | Languette type Fast-On 6,3 mm |
