Product
C4275E-L125
HYPERCELL

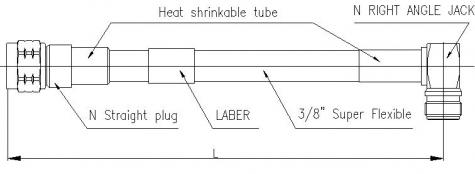

Jumper 3/8SF PE N Male – N Female Elbow
General characteristics
|
Cable: |
ACOME 50-3/8SF PE cable |
|
Connector: |
N male / N female elbow |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
2.5 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.51 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -145 dBc |
| IM3 at 1800MHz | ≤ -145 dBc | |
| IM7 at 2100MHz | ≤ -145 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C4275E-L100 | 275 | -28 | 0.25 | -26 | 0.38 | -24 | 0.45 |
| 1.25 | C4275E-L125 | 305 | -28 | 0.29 | -26 | 0.43 | -24 | 0.51 |
| 2 | C4275E-L200 | 400 | -28 | 0.39 | -26 | 0.59 | -24 | 0.71 |
| 2.5 | C4275E-L250 | 465 | -28 | 0.46 | -26 | 0.69 | -24 | 0.82 |
