Product
General characteristics
|

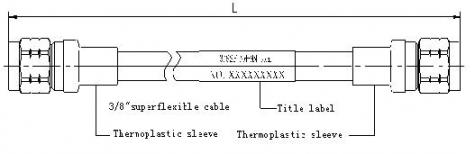

Cable: |
ACOME 50-3/8SF PE cable |
|
Connector: |
N male |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
2.5 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.51 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2× 20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 0.7 | C1394E-L70 | 225 | -32 | 0.21 | -30 | 0.32 | -26 | 0.38 |
| 0.8 | C1394E-L80 | 235 | -32 | 0.23 | -30 | 0.35 | -26 | 0.41 |
| 1 | C1394E-L100 | 260 | -32 | 0.25 | -30 | 0.38 | -26 | 0.45 |
| 1.5 | C1394E-L150 | 325 | -32 | 0.33 | -30 | 0.48 | -26 | 0.58 |
| 2 | C1394E-L200 | 390 | -32 | 0.38 | -30 | 0.59 | -26 | 0.70 |
| 2.5 | C1394E-L250 | 450 | -32 | 0.46 | -30 | 0.70 | -26 | 0.83 |
| 3 | C1394E-L300 | 515 | -32 | 0.53 | -30 | 0.80 | -26 | 0.95 |
| 4 | C1394E-L400 | 640 | -32 | 0.67 | -30 | 1.01 | -26 | 1.20 |
| 5 | C1394E-L500 | 770 | -32 | 0.81 | -30 | 1.22 | -26 | 1.45 |
