C2379E
HYPERCELL

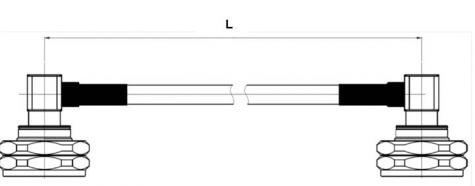

Jumper 1/4SF LSOH 7/16 Din Male Elbow – 7/16 Din Male Elbow
General characteristics
|
Cable: |
ACOME 50-1/4SF LSOH cable |
|
Connector: |
7/16 Din male elbow |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-40°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.35 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2× 20W Carries: |
IM3 at 900MHz | ≤ -150 dBc |
| IM3 at 1800MHz | ≤ -150 dBc | |
| IM7 at 2100MHz | ≤ -150 dBc | |
Range
| Length (m) | Product number | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | ||
| 0.5 | C2380X | -28 | 0.23 | -26 | 0.35 | -24 | 0.40 |
| 1 | C2379X | -28 | 0.33 | -26 | 0.50 | -24 | 0.58 |
| 1.5 | C2381X | -28 | 0.43 | -26 | 0.65 | -24 | 0.76 |
| 2 | C2382X | -28 | 0.52 | -26 | 0.80 | -24 | 0.95 |
| 3 | C2383X | -28 | 0.73 | -26 | 1.10 | -24 | 1.32 |
