Product
C1018E
HYPERCELL

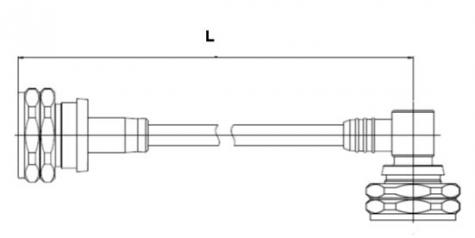

Jumper 1/4SF PE 7/16 Din Male – 7/16 Din Male elbow
General characteristics
|
Cable: |
ACOME 50-1/4SF PE cable |
|
Connector: |
7/16 Din male / 7/16 Din male elbow |
|
Assembly: |
Inner and outer contact 100% soldered and with molding |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.35 KW | |
| Velocity: | 83% | |
| Passive Intermodulation Measured In Swept Frequency Mode, With 2× 20W Carries: | IM3 at 900MHz | ≤ -150 dBc |
| IM3 at 1800MHz | ≤ -150 dBc | |
| IM7 at 2100MHz | ≤ -150 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C1012X | 315 | -28 | 0.32 | -26 | 0.47 | -24 | 0.55 |
| 1.5 | C1013X | 350 | -28 | 0.41 | -26 | 0.63 | -24 | 0.74 |
| 2 | C1014X | 390 | -28 | 0.55 | -26 | 0.79 | -24 | 0.92 |
| 2.5 | C1015X | 425 | -28 | 0.62 | -26 | 0.93 | -24 | 1.10 |
| 3 | C1016X | 460 | -28 | 0.72 | -26 | 1.11 | -24 | 1.29 |
| 3.5 | C1017X | 495 | -28 | 0.81 | -26 | 1.24 | -24 | 1.46 |
| 4 | C1018X | 535 | -28 | 0.91 | -26 | 1.38 | -24 | 1.64 |
| 5 | C1019X | 610 | -28 | 1.10 | -26 | 1.69 | -24 | 1.99 |
