Product

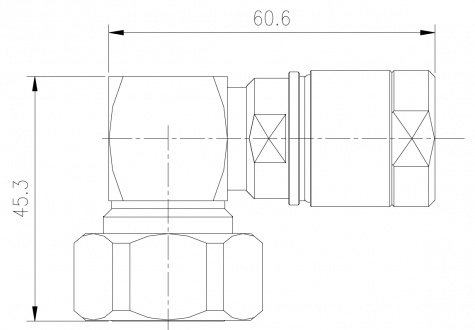

General characteristics
|
Inner Conductor: |
Silver - plated bronze |
|
Dielectric: |
PTFE |
|
Body: |
Copper alloy - plated brass |
|
Clamping and Coupling Nut: |
Nickel - plated brass |
|
Clamping Nut Waterproof: |
Silicone O-ring |
MECHANICAL & ENVIRONMENTAL
| Interface Durability: | 500 cycles | |
| Temperature: | Operating | -40°C / +85°C |
| Installation | -25°C / +55°C | |
| Storage | -50°C / +85°C | |
| Weight: | 235 g | |
| Waterproof Index: | IP68 | |
| RoHS Compliance: | Yes | |
ELECTRICAL
| Impedance: | 50 ± 1 Ω |
| Operating Frequency Band: | DC ~ 4GHz |
| VSWR: | DC ~ 2.2 GHz: ≤ 1.10 |
| 2.2 ~ 3 GHz: ≤ 1.135 | |
| 3 ~ 4 GHz: ≤ 1.20 | |
|
3rd Order Passive Intermodulation, Measured In Swept Frequency Mode with 2 20W carriers, F ≤ 1880 MHz: |
≤ -160 dBc |
| Voltage Test (at sea level): | 3000 V eff / 50 Hz |
| Operating Voltage (at sea level): | 1600 V eff / 50 Hz |
| Insulation Resistance: | ≥ 10000 MΩ |
| Contact Resistance: | Inner contact: ≤ 0.4 mΩ |
| Outer contact: ≤ 1.5 mΩ |
Range
Compatibility with ACOME HPL 50 -1/2F
M1473, M2831, M5445,M5454,M5453, M5398,M5644,M5646
Test Methods: IEC 61169-4, IEC 62037-3, IEC 60529
