B1237A
"ACOLAN OPTICAL - MBO REINFORCED ZH"

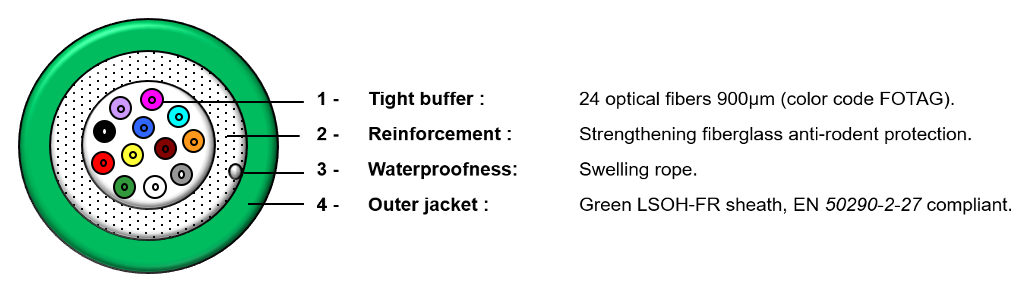

Benefits
- Reinforced cable suitable for all environments
- Stripping becomes faster with our new tight Rapid Strip Fiber (RS 900).
- Design optimized for connector mounting or Fiber splicing.
Applications
- High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables) and available for all environments (Industrial, Residential and Office Buildings).
General characteristics
ACOME Protection Index against rodents IPA: ✭✭✭✩✩ = Reinforced Protection
Marking of outer jacket: ACOLAN MBO RFD ZH - fiber count & type - product reference - Euroclass - JJ/MM/AA hh:mm + metric
|
Characteristics |
Value |
|
|
MBO 24 fibers |
||
|
Z1410B |
||
|
Temperature range |
Transport and storage |
-40°C to + 70°C |
|
During installation |
-5°C toà + 50°C |
|
|
In service |
-30°C to + 70°C |
|
|
Maximum pulling force |
2500 |
|
|
Crush resistance |
300 |
|
|
Minimum bending radius (mm) |
10 x cable diameter |
|
|
Standard packaging |
2100m drums |
|
|
Nominal sheath thickness (mm) |
1,5 |
|
|
Nominal diameter (mm) |
11,5 |
|
|
Nominal weight (kg/km) |
120 |
|
Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.
Optical Fibers n° 13 to 24 have a black mark on the buffer (the black fiber’s sheath is replaced by a dark green).
Range
| Cable Content | Multimode 50/125 OM2 ACMM50 OM2 | Multimode 50/125 OM3 ACMM50 OM3 | Multimode 50/125 OM4 ACMM50 OM4 | Single mode 9/125*OS2 ACSM2-D PREMIUM |
| 24 Fibres | B1237A | B1238A | B1239A | B1240A |
*9/125 : UIT-T G.652.D fibers
Norms and standards
Cable and fibers: EN 60793 / EN 60794
Wiring systems: qEN 50173-1 / ISO 11801
Applications: IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …).

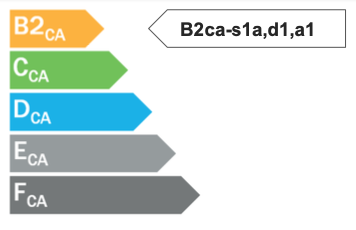

Europe:
|
Number of fibers |
Euroclass |
Declaration of performance |
Standards |
|
24 fibers |
B2ca-s1a,d1,a1 |
17MBO0005 |
IEC 60332-1, EN 50399, IEC 60754-2, IEC 61034,EN 50399, IEC 60754-2 |
|
48 fibers |
Eca |
17 CLT0005 |
IEC 60332-1 |
Scan the QR code to access declarations of performance on www.acome.fr .
Outside Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
|
No Fire propagation |
IEC 60332-3-24 (3C) * |
* Fire tests performed by our own COFRAC accredited fire lab.
