IB1632
HEMERA CITY
Benefits
- IP65
- Wall or pole mounting
- Secure energy and data management
- Pre-equipped 1 or 2-port PoE+ versions
Applications
This external optical and electrical box is designed to provide a fiber optic and electrical connection point for video surveillance network cameras, WiFi antennas, etc.
It provides a common maintenance point for the fiber and electrical parts (energy and telecom).
Compact and equipped with specific management systems, the HEMERA D1 box ensures the separation of fiber optic and copper cabling to provide an optimal level of safety.
The HEMERA D1 box is equipped with 3 cable glands for management of mixed power-fiber cable supply and copper Ethernet cable separately.
General characteristics

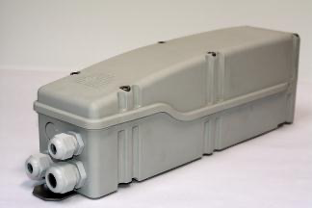

The HEMERA City D1 is an outdoor box featuring:
- Painted electro-galvanized steel frame.
- Cover connected to steel cable frame to prevent falls
- Captive screw fasteners
- Protective cover for cable entry and exit (optional)
Fiber optic management:
- Fastening plate for securing the cable.
- 4-fiber splice tray
Electrical management (DIN rail mounting):
- Ground terminal.
- Sealed cable glands.
|
Characteristics |
Description |
|
Cable entries |
4 cable glands 1 PG16 2 PG11 1 PG13* |
|
weld management |
1 tray 4 splices |
|
DIN rail length |
High rail: 75mm |
|
Dimensions (H x D x W)
|
Overall 100x410x120 Interior 75x260x100 mm |
|
Weight(1) (kg) |
1.7 |
|
Protection |
IK10-rated mechanical impact protection IP67-rated dust/water ingress protection |
|
Operating temperature |
-20°C / +50°C |
|
Colour |
Grey RAL 7035 paintable surface |
|
interior fastening surface |
Many screwing locations across the entire bottom surface of the box |
* drilling hole on IB1632 and IB 1637, equipped with a cable gland on IB1639
Characteristics of Pre-Equipped Boxes:
|
Components |
IB1637 Fast Ethernet PoE+ converter |
IB1639 RJ45 Giga Microswitch + 2 SFP |
|
Residual-current device |
10A |
6A |
|
Micro switch |
1 |
1 |
|
RJ45 port |
1 |
2 |
|
protocol |
10/100 Base Tx |
10/100/1000 Base T |
|
PoE |
PoE+ 30W |
PoE +30W |
|
SFP Cage |
NA |
2 slots 100/1000 Mbits |
|
protocol |
100Base-FX converter |
|
|
Power supply |
48V |
60W – 48V |
Range
|
Designation |
References |
|
HEMERA City D1 box, unequipped |
IB1632 |
|
HEMERA City D1 box Active Fast PoE+ converter |
IB1637 |
|
HEMERA City D1 box Active micro-switch 2RJ PoE+ 2SFP |
IB1639 |
ACCESSORIES:
|
Name |
reference |
|
|
Hook for mounting inside tower |
IB1634-S5 |
Pack of 5 hooks |
|
HEMERA CITY D1 Cable entry protection |
IB1636 |
|
