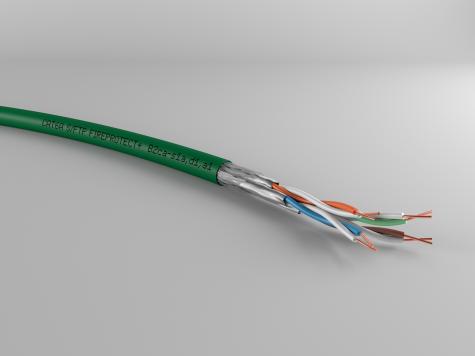

PHOTO PRODUCT ACOME R8597A-T1000

ACOLAN® COPPER FIREPROTECT+

S/FTP Cat.6a 550 MHz LSOH-FR 4P TOURET 1000m GREEN

Applications

  • 10 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the EA class for the 10 GBASE-T applications.
  • They are characterized of up to 550 MHz.
  • They are compatibles with PoE & PoE+, UPoE & 4PPoE (PoE++) applications.

General characteristics

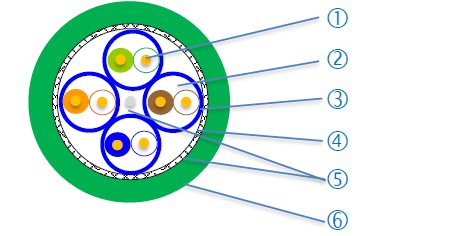

Caractéristiques_acome_acolan_optique_FIREPROTECT+



  1. Conductor

Solid annealed red copper wire, AWG 23
Foam skin Pe insulation Ø ≤ 1.45 mm
  1. Cable element

Cable assembly in Twisted Pairs
  1. Pair screening

Pet/Alu foil around each pair
  1. Standing

4 pairs screening assembly
  1. Screen

Tinned copper braid
  1. External sheath

LSOH-FR : Low Smoke « Zero » Halogen - Flame Retardant



GENERAL
Designation ACOLAN FIREPROTECT+ Ref. Coulour Diametre Weight Superior calorificcapacity (PCS) Max pulling tension
mm Kg/km MJ/km KWh/m N
550 SF-P 4P LSOH-FR R8597A Green 7.70 63 597 0.166 95



MECHANICAL
Characteristics Values
Bending radius Dynamic (installation) ≥ 60 mm
Static (installed) ≥ 30 mm
Temperature range In service - 20°C à + 60°C
At the installation 0°C à + 50°C
Transport and storage 0°C à + 50°C



ELECTRICAL

Electrical characteristics at 20°C (68°F)

Characteristics Values
Complete conductor resistance  ≤ 146.4 Ω / km
Resistance unbalance ≤ 2 %
Dielectric strength Continuous current 1kV pendant 1 minute = pas de claquage
Insulation resistance (500 V) ≥ 5000 MΩ . km
Capacitance unbalance Real-ground ≤ 1600 pF / km
Characteristic impedance at 100 MHz 100 ±  5 Ω
Velocity nominal 78%
Coupling attenuation ≥ 85 dB TYPE 1
Transfer impedance à     1 MHz ≤  8 mΩ / m GRADE 1
à   10 MHz ≤  8 mΩ / m
à   30 MHz ≤  10 mΩ / m
à 100 MHz ≤ 20 mΩ / m
Segregation classification acc. to EN 50174-2 “d”



Frequency (MHz)   4 10 20 62.5 100 250 500 550**
Attenuation (dB/100m) Typical value 3.6 5.5 7.9 14.5 18.5 29.6 42.9 50
Imposition (max)* 3.8 5.9 8.4 15 19.1 31.1 45.3 -
Next (dB) Typical value 95 95 95 95 95 88 84 83
Imposition (min)* 65.3 59.3 54.8 47.4 44.3 38.3 33.8 -
PS Next (dB) Typical value 92 92 92 92 92 85 81 80
Imposition (min)* 63.3 57.3 52.8 45.4 42.3 36.3 31.8 -
ELFEXT (dB/100 m)  Typical value 85 85 84 82 78 70 56 55
Imposition (min)* 56 48 42 32.1 28 20 14 -
PS ELFEXT (dB/100 m) Typical value 82 82 81 79 75 67 53 52
Imposition (min)* 53 45 39 29.1 25 17 11 -
Return Loss (dB) Typical value 26 28 28 26 24 22 19 18
Imposition (min)* 23 25 25 21.5 20.1 17.3 17,3 -
PS ANEXT (dB) Typical value 85 85 85 85 80 73 68 67
Imposition (min)* 76.5 72.5 69.5 64.5 62.5 56.5 52 -

* Category 6a according IEC 61156-5 Ed. 2
** For information only



Norms and standards

GENERAL

      logo poe ready        logo ce



Applications

  • IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 2,5G Base-T, 5G Base-T, 10G Base-T
  • IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
  • IEEE 802.5 /  FDDI / ATM / RNIS

Cables

  • IEC 61156-5 ed.2 /  EN 50288-10-1

Cabling system standard

  • ISO/IEC 11801 2nd ed. / EN 50173-1 / TIA-568.2-D

Cabling system installation standards

  • EN 50174

Directive / Regulation

  • RoHS 2011/65/UE
  • REACH 1907/2006/EC

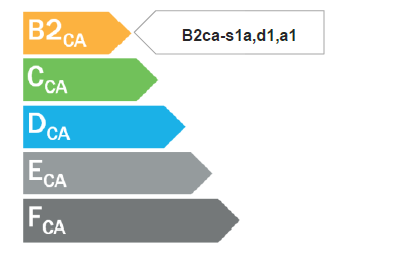

EUROCLASSE

Caractéristiques_acome_acolan_cuivre



Fire behaviour

Europe

Type Euroclass Standards Declaration of performance
4P Cca-s1,d2,a1 IEC 60332-1, EN 50399,  IEC 60754-2 17SFTP013



Hors Europe

No flame propagation IEC 60332-1 / EN 60332-1
Low smoke opacity IEC 61034-2 / EN 61034-2
Low gas corrosivity IEC 60754-2 / EN  60754-2
Low toxicity IEC 60754-1 / EN 60754-1



Recommendations

CONDITIONNEMENTS
Type References individual Expedition
Type Weight EAN code Quantity Weight EAN code
4P LSOH-FR R8597A-T500 Drum KT de 500 m 33 kg 3700223697809 18 Drums 615kg 3700223697816
R8597A-T1000 Drum XL de 1000 m 67 kg 3700223697823 4 Drums 284kg 3700223697830
