Product

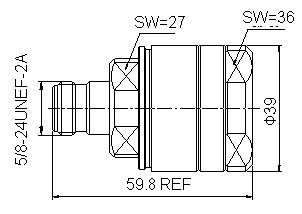

General characteristics
|
Inner Conductor: |
Silver - plated bronze |
|
Dielectric: |
PTFE |
|
Body: |
Copper alloy - plated brass |
|
Clamping and Coupling Nut: |
Nickel - plated brass |
|
Clamping Nut Waterproof: |
Silicone O-ring |
MECHANICAL & ENVIRONMENTAL
|
Interface Durability: |
500 cycles |
|
|
Temperature: |
Operating |
-40°C / +85°C |
| Installation | -25°C / +55°C | |
| Storage | -50°C / +85°C | |
|
Weight: |
55 g |
|
|
Waterproof Index: |
IP68 |
|
| RoHS Compliance: | Yes | |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Band: | DC ~ 4GHz | |
| VSWR: | DC~3GHz | ≤ 1.10 |
| 3~4GHz | ≤ 1.20 | |
|
3rd Order Passive Intermodulation, Measured In Swept Frequency Mode with 2 × 20W carriers, F ≤ 1880 MHz: |
Static: | ≤ -155 dBc |
| Dynamic: | ≤ -145 dBc | |
| Voltage Test (at sea level): | 2500 V eff / 50 Hz | |
| Operating Voltage (at sea level): | 1500 V eff / 50 Hz | |
| Insulation Resistance: | ≥5000 MΩ | |
| Contact Resistance: | Inner contact: | ≤ 1.5 mΩ |
| Outer contact: | ≤ 1.0 mΩ | |
Range
Compatibility with ACOME HPL 50 -7/8
M5407, M5422, M5510,M5430,M5436,M5643,M5645
Test Methods: IEC 61169-16, IEC 62037-3, IEC 60529
Recommendations
INSTALLATION
ANM - C0657E
