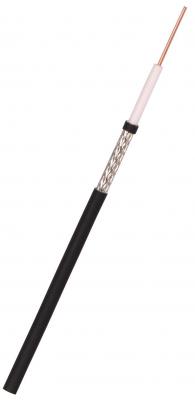

General characteristics
|
Inner Conductor: |
Copper - clad Aluminium Diameter: |
1.75 mm |
|
Dielectric: |
Foam Polyethylene Diameter: |
4.8 mm |
|
Outer Conductor: |
Alu / polyester / Alu tape Tinned copper braid Diameter: |
5.6 mm |
|
Jacket: |
Black High Fire resistant Low smoke Zero Halogen Compound Diameter: |
6.85 mm |
Ink marking: ACOME HYPERCELL COAX LSOH HFR HPL 50-1/4XF EXTRA FLEXIBLE M5332 LOT X lot N° (+ Metric length)
| Bending radius: | Operating | 45 mm – Min |
| Installation | 20 mm – Min | |
| Inst. / Op. Tensile Strength: | 600 / 400 N – Max | |
| Weight: | 56 kg/km | |
| Packaging: | 500 m | |
| Temperature range: | Operating | -40°C / +85°C |
| Installation | -20°C / +60°C | |
| Storage | -70°C / +85°C | |
| Fire resistance: | NFC 32070.2.2 | |
| Smoke toxicity: | IEC 60754-2 / NFC20-454 | |
| Smoke density: | IEC 61034 | |
| Test methods: | IEC 60096-0-1, 61196-1, 60966-1 | |
Impedance : 50 ± 1.5 Ω
Return loss (jumper L =1m) :
30 ~ 1000 MHz ≤ -26.5 dB
1000 ~ 2000 MHz ≤ -21 dB
2000 ~ 3500 MHz ≤ -18 dB
Capacitance: 79 pF/m
Velocity: 84%
Dielectric constant: 1.42
Screening effectiveness: > 85 dB
Operating frequency: ≤ 15 GHz
Peak power rating: 3.6 kW
Operating voltage: 0.6 kV RMS
Insulation Resistance: > 10000 MΩ.km
DC resistance:
Inner conductor: ≤ 11.0 Ω/km
Outer conductor: ≤ 10.5 Ω/km
|
Frequency (MHz) |
Attenuation (dB/100m) @ 20°C Typical |
Power kW @ 40°C-Ambient Temperature Inner conductor: 100°C |
| 10 | 2.74 | 3.00 |
| 30 | 4.32 | 1.84 |
| 100 | 6.94 | 1.09 |
| 300 | 11.47 | 0.67 |
| 450 | 14.29 | 0.56 |
| 900 | 20.90 | 0.41 |
| 1000 | 21.83 | 0.38 |
| 1500 | 27.13 | 0.31 |
| 1800 | 29.60 | 0.28 |
| 2000 | 31.59 | 0.26 |
| 2600 | 36.40 | 0.23 |
| 3000 | 39.40 | 0.22 |
| 3500 | 42.90 | 0.19 |
| 3800 | 44.89 | 0.17 |
| 5000 | 52.30 | 0.14 |
| 5700 | 56.35 | 0.12 |
| 6000 | 57.95 | 0.11 |
