Product

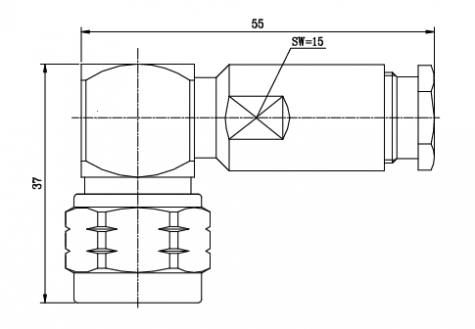

General characteristics
|
Inner Conductor: |
Silver - plated bronze |
|
Inner Contact: |
Silver - plated brass |
|
Dielectric: |
PTFE |
|
Body: |
Copper alloy - plated brass |
|
Clamping and Coupling Nut: |
Nickel - plated brass |
|
Clamping Nut Waterproof: |
Silicone O-ring |
|
Coupling Waterproof: |
Silicone gasket |
MECHANICAL & ENVIRONMENTAL
|
Interface Durability: |
500 cycles |
|
|
Temperature: |
Operating |
-40°C / +85°C |
| Storage | -50°C / +85°C | |
|
Weight: |
90 g |
|
|
Waterproof Index: |
IP67 |
|
| Axial Retention Force: | 370N | |
| RoHS Compliance: | Yes | |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Band: | DC ~ 3.5GHz | |
| VSWR | 0~1 GHz | ≤ -26.5 dB |
| 1~2 GHz | ≤ -21 dB | |
| 2~3.5 GHz | ≤ -18 dB | |
| Voltage Test (at sea level): | 1500 V eff / 50 Hz | |
| Operating Voltage (at sea level): | 600 V eff / 50 Hz | |
| Insulation Resistance: | ≥5000 MΩ | |
| Contact Resistance: | Inner contact: | ≤ 1.5 mΩ |
| Outer contact: | ≤ 1.0 mΩ | |
Range
Compatibility with ACOME HPL 50 -1/4XF
M5361, M5300, M5332
Test Methods: IEC 61169, IEC 62037, IEC 60529
Recommendations
INSTALLATION INSTRUCTION
ANM - C0324X
