Product
General characteristics
|
Cable: |
ACOME 50-1/4SF LSOH cable |
|
Connector: |
N male / N female |
|
Assembly: |

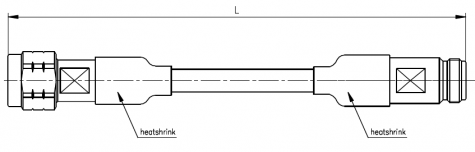

Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
2.5 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-40°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.35 KW | |
| Velocity: | 83% | |
| Passive Intermodulation Measured In Swept Frequency Mode, With 2× 20W Carries: | IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 0.5 | C1031X | 150 | -32 | 0.23 | -30 | 0.33 | -26 | 0.38 |
| 1 | C1032X | 195 | -32 | 0.32 | -30 | 0.47 | -26 | 0.56 |
| 2 | C1033X | 285 | -32 | 0.55 | -30 | 0.79 | -26 | 0.92 |
| 3 | C1387X | 365 | -32 | 0.76 | -30 | 1.12 | -26 | 1.28 |
| 4 | C1388X | 455 | -32 | 0.96 | -30 | 1.43 | -26 | 1.65 |
| 5 | C1389X | 540 | -32 | 1.15 | -30 | 1.72 | -26 | 1.99 |
