B1301A
ACOLAN® FIREPROTECT OPTICAL
Watertight – 50/125 OM2, OM3, OM4, OM5, 9/125 OS2
Benefits
- Flexible inner Tube
- Improved Fire Performance
- Reinforced Protection against rodents
- Save time during installation thanks to the new dry cable structure
Applications
- High-speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
- They can be use Outdoor.
General characteristics
ACOME Protection Index against rodents IPA: ✭✭✭✩✩ = Reinforced Protection
Marking of outer jacket: ACOLAN FIREPROTECT CLT RFD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm + metric
|
Characteristics |
Value |
||
|
Z1416A |
Z1417A |
||
|
4 to 12FO |
24FO (bi-tubes) |
||
|
Temperature range |
Transport and storage |
- 40°C to + 70°C |
|
|
At the installation |
-5°C to + 50°C |
||
|
In service |
-20°C to + 60°C |
||
|
Maximum pulling force (N) |
3000 |
||
|
Crush resistance (N/10 cm) |
2000 |
||
|
Minimum bending radius (mm) |
10xD |
||
|
Standard packaging |
2100m drums |
||
|
Nominal sheath thickness (mm) |
1,3 |
||
|
Nominal diameter (mm) |
8,3 |
9,2 |
|
|
Nominal weight (kg/km) |
74 |
86 |
|
Wrapping: cables are supplied with a protective wrap, which must be maintained until full use of the product.
Range
|
Cable content |
Multimode 50/125 OM2 ACMM50 OM2 |
Multimode 50/125 OM3 ACMM50 OM3 |
Multimode 50/125 OM4 ACMM50 OM4 |
Multimode 50/125 OM5 ACMM50 OM5 |
Single mode 9/125* OS2 ACSM2-D PREMIUM |
|
4 fibers |
B1301A |
B1307A |
B1313A |
|
B1319A |
|
6 fibers |
B1302A |
B1308A |
B1314A |
B1349A |
B1320A |
|
8 fibers |
B1303A |
B1309A |
B1315A |
|
B1321A |
|
12 fibers |
B1304A |
B1310A |
B1316A |
B1350A |
B1322A |
|
24 fibers |
B1305A |
B1311A |
B1317A |
B1351A |
B1323A |
*9/125 : fibres UIT-T G.652.D
Norms and standards
Cable et fibres : EN 60793 / EN 60794
Wiring systems : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
Europe
| Number of fibers | Euroclass | Declaration of performance | Standards |

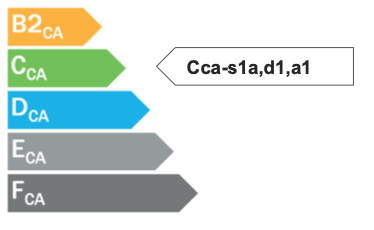

| 4 to 12 fibres | Cca-s1a,d1,a1 |
IEC 60332-1, EN 50399, IEC 60754-2, IEC 61034 |
|
| 24 fibres | Cca-s1a,d1,a1 | 20CLT0008 | IEC 60332-1, EN 50399, IEC 60754-2, IEC 61034 |
Outside Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
|
No Fire propagation |
IEC 60332-3-24 (3C)* (4 to 24 fo) |
