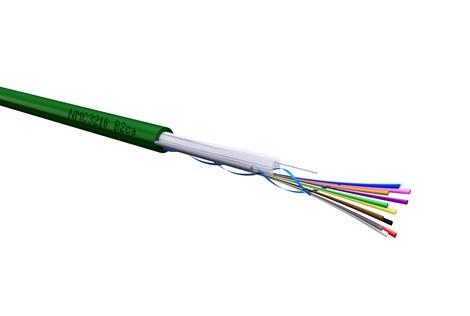

Clone of NMC3210 STANDARD ZH
ACOLAN OPTICAL
- Nanomodule structure, indoor/outdoor, watertigh
- 4 to 48 FO (G657A1, OM3, OM4)
- Dielectric
- Green outer jacket, LSOH, strenghtened glass wick
- B2ca-s1a,d1,a1
Benefits
- Quick installation and connection
- Optimal design to facilitate preparation and access to fibers
- Improved fire perfomance : B2ca-s1a,d1,a1
- Low carbon footprint
- ACOME Protection Index against rodents IPA: ✭✩✩✩✩ = Low Protection
Applications
- High speed data transmission cables designed for local networks (LAN).
- Available for any type of environments : Office Buildings, Industrial, buildings open to the public and high-rise buildings.
General characteristics
GENERAL
|
Characteristics |
Value (4 to 24 fibers) | |
| Maximum pulling force (N) | 1800 | |
| Crush resistance (N/10cm) | 1000 | |
| Minimum bending radius (mm) | 10 x cable diameter | |
| Caractéristiques | Value (4 to 24 fibers) | ||
| Standard packaging (m) | 2100 | ||
| Nominal sheath thickness (mm) | 1,2 | ||
| Nominal diameter (mm) | 6,7 | ||
| Nominal weight (kg/km) | 45 | ||
| Temperature range |
Transport and storage | -40°C à +70°C | |
| During installation | -5°C à +50°C | ||
| In service | -20°C à +60°C | ||
Color code FOTAG (fiber & modules) :
| Bleu | Orange | Vert | Marron | Gris | Blanc | Rouge | Noir | Jaune | Violet | Rose | Turquoise |
Range
| Cable Content | Monomode 9/125 G657A1 | Multimode 50/125 OM3 | Multimode 50/125 OM4 |
| 4 fibers | B1401A | B1407A | B1413A |
| 6 fibers | B1402A | B1408A | B1414A |
| 8 fibers | B1403A | B1409A | B1415A |
| 12 fibers | B1404A | B1410A | B1416A |
| 24 fibers | B1405A | B1411A | B1417A |
| 48 fibers | Consult us | ||
Norms and standards
GENERAL
Cable and fibers : EN 60793 / EN 60794
Wiring system : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
FIRE BEHAVIOUR
|
Number of fibers |
Euroclass |
Declaration of performance |
Standards |
|
4 to 24 fibers |
B2ca-s1a,d1,a1 |
IEC 60332-1 (No flame propagation) NF EN 50399 (Heat and smoke released) IEC 60754-2 (Low gas corrosivity) IEC 61034 (Smoke opacity) |
